Hey there! As a supplier of plastic injection molds, I've been in the industry for quite a while. One of the most frequently asked questions I get is about the requirements for the surface hardness of plastic injection molds. So, I thought I'd share some insights on this topic.
First off, why is surface hardness so important for plastic injection molds? Well, it's all about durability and performance. A mold with the right surface hardness can withstand the high pressures and temperatures involved in the injection molding process. It also resists wear and tear, which means it'll last longer and produce consistent, high - quality plastic parts.
Let's start with the basic materials used for plastic injection molds. Commonly, we use tool steels like P20, H13, and S7. Each of these steels has different properties, and their surface hardness requirements vary accordingly.
P20 is a pre - hardened steel that's widely used for general - purpose plastic injection molds. It usually has a hardness range of around 28 - 32 HRC (Rockwell Hardness Scale). This hardness level is suitable for molds that produce parts with relatively simple geometries and lower production volumes. For example, if you're making small, consumer - grade plastic products like phone cases or simple toys, P20 molds with this surface hardness can do the job just fine. You can learn more about the general process of Plastic Injection Molding on our website.
H13, on the other hand, is a hot - work tool steel. It's known for its excellent thermal fatigue resistance, which makes it ideal for molds used in high - volume production and for parts that require high - precision molding. The surface hardness of H13 molds typically ranges from 48 - 52 HRC. This higher hardness allows the mold to endure the repeated heating and cooling cycles during the injection molding process without deforming. Industries such as automotive and electronics often use H13 molds to produce complex parts like engine components or electronic housings. Check out Industrial Plastic Injection Moulds for more details on molds used in industrial applications.
S7 is a shock - resistant tool steel. It has a relatively lower hardness compared to H13, usually around 44 - 48 HRC. S7 is great for molds that are subjected to high - impact forces during the molding process. For instance, if you're making large, thick - walled plastic parts that might cause a lot of stress on the mold when the plastic is injected, S7 molds can handle it well.
Now, besides the type of steel, the production volume also plays a big role in determining the surface hardness requirements. For low - volume production, say less than 10,000 parts, a mold with a lower surface hardness can be sufficient. You can save some costs by using a pre - hardened steel like P20. But as the production volume increases, you'll need a mold with higher surface hardness to ensure its longevity. For high - volume production, over 100,000 parts, a hardened steel like H13 is almost a must.
The complexity of the part design is another factor. If the plastic part has intricate details, thin walls, or undercuts, the mold needs to have a higher surface hardness. This is because the high - precision molding required for complex parts puts more stress on the mold surface. A harder surface can maintain its shape and accuracy over time, ensuring that each part produced meets the design specifications.

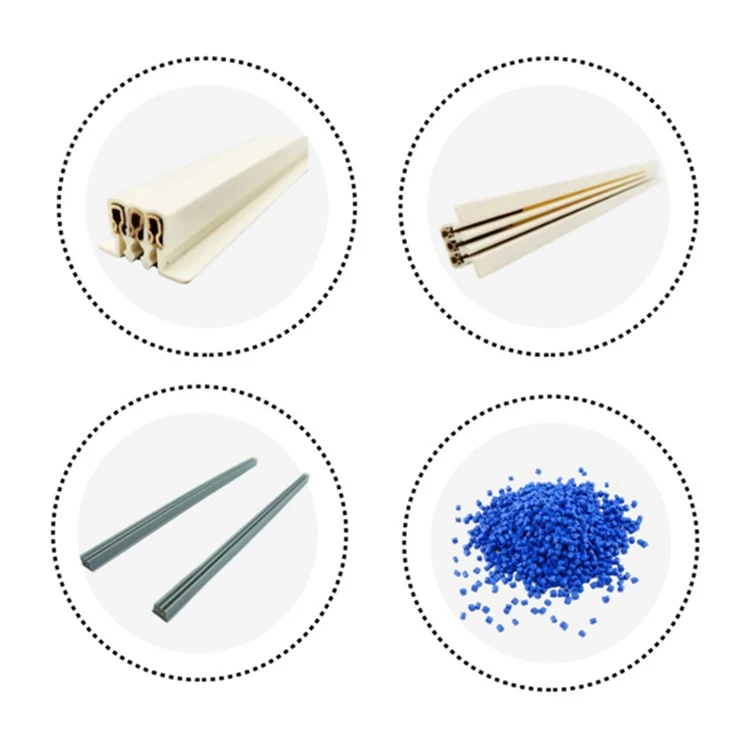

The type of plastic material being injected also affects the surface hardness requirements. Some plastics, like ABS, are relatively soft and don't cause much wear on the mold. For Abs Plastic Injection Molding, a mold with a moderate surface hardness can work well. However, if you're using abrasive plastics like filled polycarbonate or glass - filled nylon, the mold surface will experience more wear. In this case, a higher surface hardness is necessary to prevent premature damage to the mold.
To achieve the desired surface hardness, several heat - treatment processes are commonly used. Quenching and tempering are two of the most popular methods. Quenching involves rapidly cooling the steel after heating it to a specific temperature. This process hardens the steel but also makes it brittle. That's where tempering comes in. Tempering is a subsequent heat - treatment step that reduces the brittleness and improves the toughness of the steel while maintaining a high level of hardness.
Another method is nitriding. Nitriding is a surface - hardening process that introduces nitrogen into the steel surface. This creates a hard, wear - resistant layer on the mold surface. Nitriding is often used for molds that require a very hard and smooth surface, especially for applications where the plastic parts need to have a high - gloss finish.
After the heat - treatment process, it's crucial to measure the surface hardness accurately. There are several testing methods available, such as the Rockwell hardness test, Brinell hardness test, and Vickers hardness test. Each method has its own advantages and is suitable for different situations. The Rockwell hardness test is quick and easy to perform, making it a popular choice in the industry.
In addition to the initial surface hardness requirements, it's also important to consider the long - term maintenance of the mold. Regular cleaning, lubrication, and inspection can help extend the life of the mold and maintain its surface hardness. Any signs of wear or damage should be addressed promptly to prevent further deterioration.
As a plastic injection mold supplier, I understand that every customer has unique requirements. Whether you're a small - scale manufacturer looking for a cost - effective mold for low - volume production or a large - scale industrial company in need of high - precision, high - volume molds, we can help. Our team of experts can work with you to determine the best surface hardness requirements for your specific application, choose the right materials, and perform the necessary heat - treatment processes.
If you're interested in learning more about our plastic injection molds or have any questions regarding surface hardness requirements, don't hesitate to get in touch with us. We're here to provide you with the best solutions for your plastic injection molding needs.
